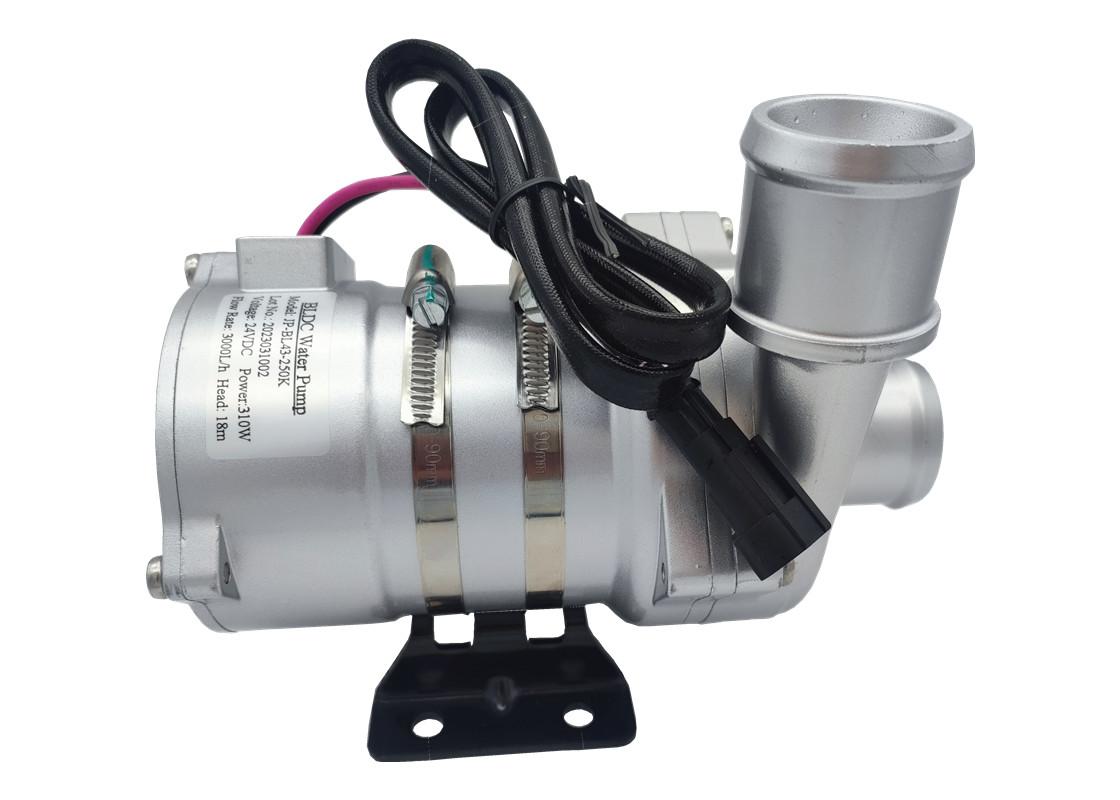

24V 310W High Head 18m Brushless DC Water Pump For LongHaul Trucks Cooling Systems

Junqi 24V 310W high head 18m Brushless DC Water Pump For LongHaul Trucks cooling Systems

■ Applications
Widely used in hybrid bus, hybrid passenger car, electric vehicles, LongHaul Trucks, Electric Drayage Truck,  Logistics and Freightliner Electric Trucks, and other heating and cooling circulation system.

■ Features
◆ Centrifugal pump
◆ Magnetic force transmission
◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆ With wide range operating temperature
◆ PWM signal speed controlling
◆ Diagnostic signal output
◆ With constant flow controlling
◆ Reverse polarity protection
◆ Dry running protection
◆ Over Voltage, over current protection
◆ Overload, over temperature protection


■Technical parameter

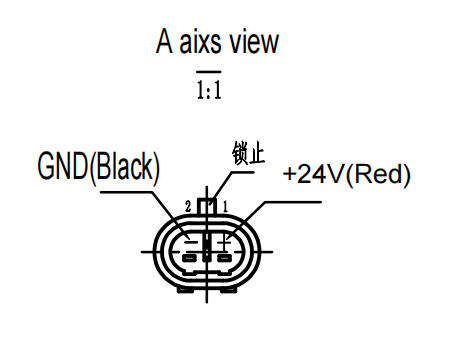

Connector model and the corresponding electrical properties (see figure 3):

                                             Figure 3

■ Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump

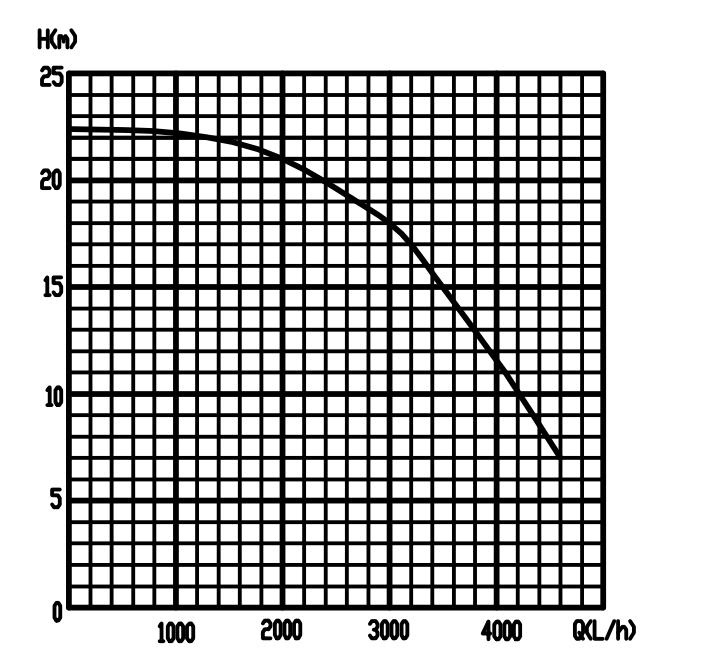

■ Performance parameter



■External dimension
