NEMA34 1.8 Degree 5N.m 82mm Length Stepper Motor JQ86HS82 For Labeling Machine and CNC Kit
Quick Details:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Dielectric Strength | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |

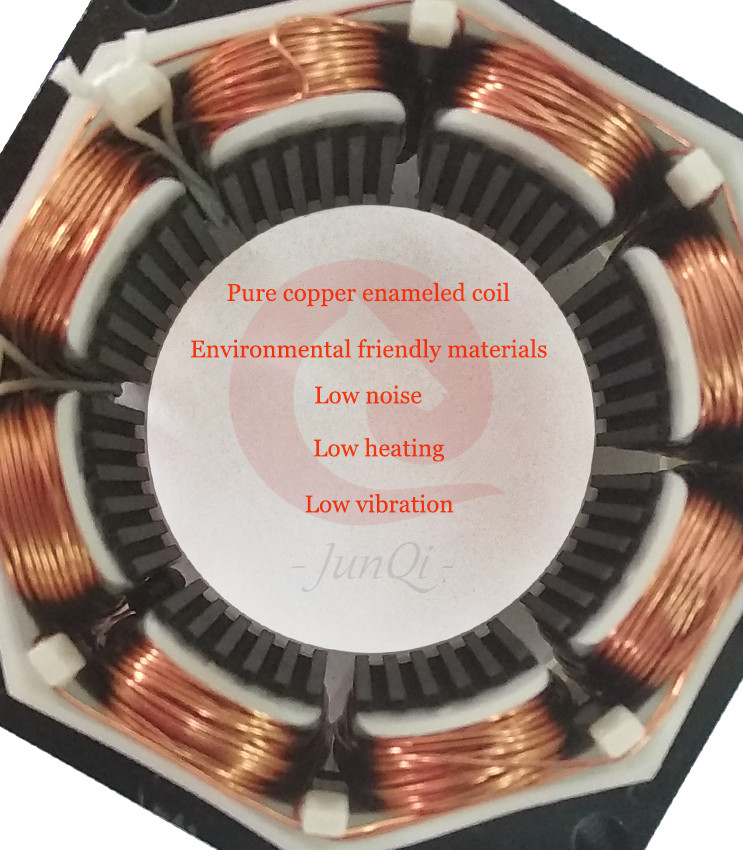

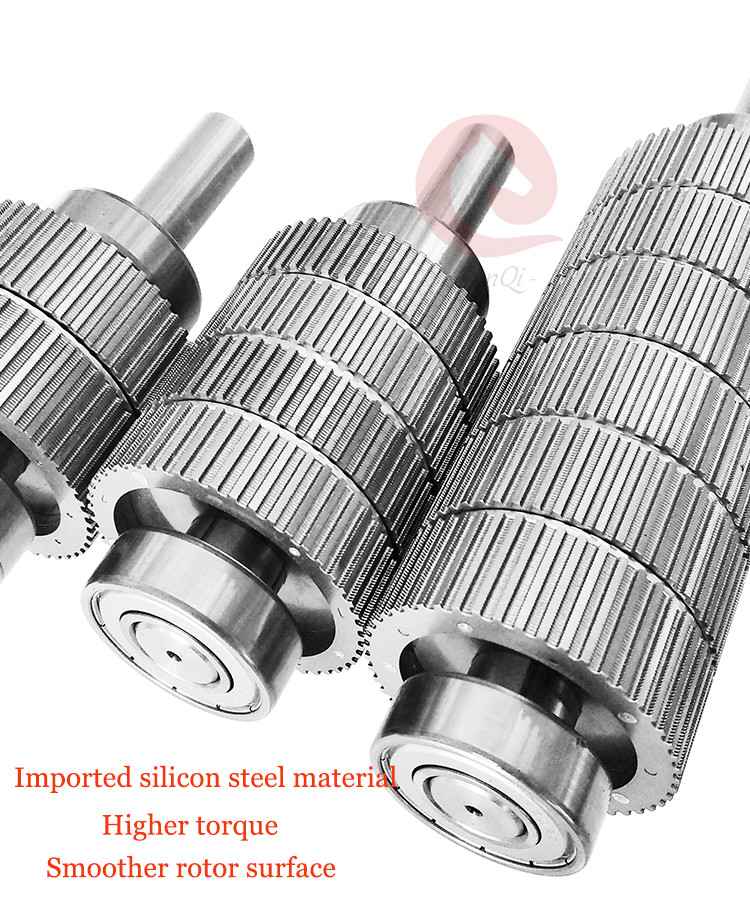

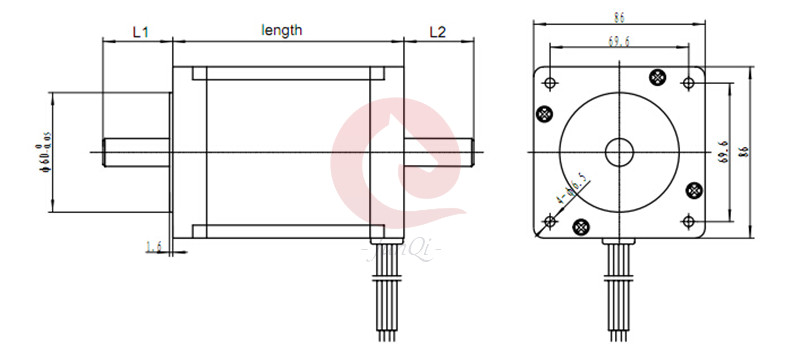

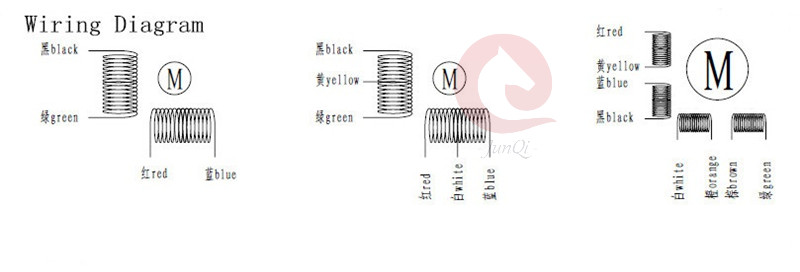

Mechanical Size and Electric Connection:
Notes: L1 and L2 canbe customized according to customers' requirements.
Electricl Specification:
| Model No | Step
Angle
(°) | Rated
Voltage
(V) | Rated
Current
(A) | Phase
Resistance
(Ω) | Phase
Inductance
(mH) | Holding
Torque
(Kg.cm) | Rotor
Inertia
(g.cm²) | Motor
Length
(mm) | Leads No. | Motor
Weight
(Kg) |
| JQ86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 1000 | 65 | 4 | 1.7 |
| JQ86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1200 | 68 | 4 | 1.7 |
| JQ86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1400 | 78 | 4 | 2.3 |
| JQ86HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1400 | 78 | 4 | 2.3 |
| JQ86HS78-6008 | 1.8 | 3.0 | 6 | 0.5 | 4 | 45 | 1400 | 78 | 8 | 2.3 |
| JQ86HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1500 | 82 | 4 | 2.5 |
| JQ86HS82-5608 | 1.8 | 2.0 | 5.6 | 0.35 | 3 | 50 | 1500 | 82 | 8 | 2.5 |
| JQ86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2100 | 100 | 4 | 3.2 |
| JQ86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2100 | 100 | 8 | 3.2 |
| JQ86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2700 | 118 | 4 | 3.7 |
| JQ86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2700 | 156 | 8 | 3.7 |
| JQ86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 4000 | 156 | 4 | 5.5 |
| JQ86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products, products of special request can be made according to the customer request. |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
