110mm 3-Phase Hybrid Stepper Motor 173mm Length, 4.1A 13.92 N.m CNC machine Parts
General Specification:
| Item | Specifications |
| Step Angle | 1.2° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max. Radial force | 330N(20mm from the flange) |
| Max.Axial force | 100N |
| Ambient Temperature | -20℃～+50℃ |
| Insulation Resistance | 100MΩMin.500VDC |
| Dielectric Strength | 1800VAC/1s |
| Insulation Class | Class B |
Electrical Specification:
| Model No. | Current/ Phase | Resistance/ phase | Inductance/ phase | Holding Torque | Detent Torque | # of leads | Rotor Inertia | Lengh | Weight |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm² | mm | kg |
| JQ1103P170-01 | 4.1 | 1.96 | 18 | 13.92 | 1.01 | 6 | 10500 | 173±1 | 8 |
Notes: The moitor can be designed and manufactured with customized request.

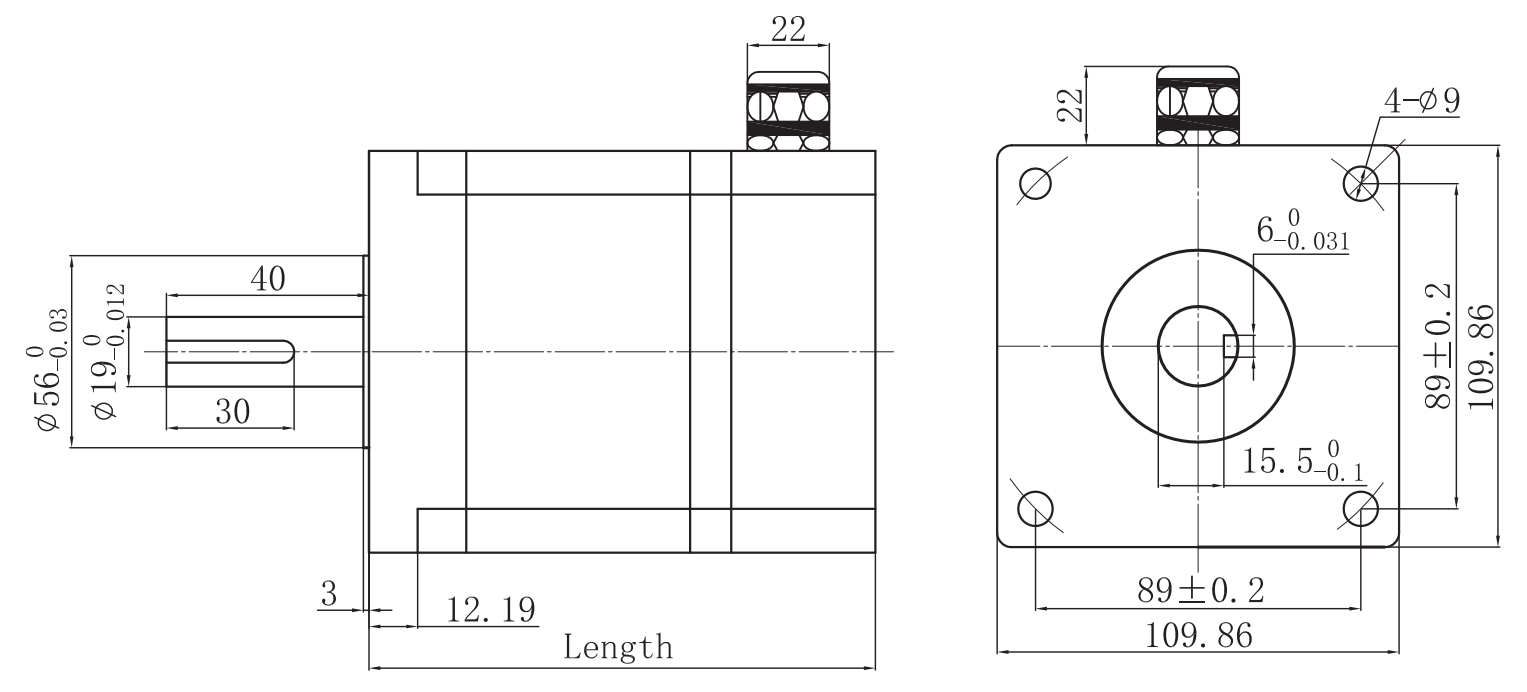

Mechanical Size(mm):

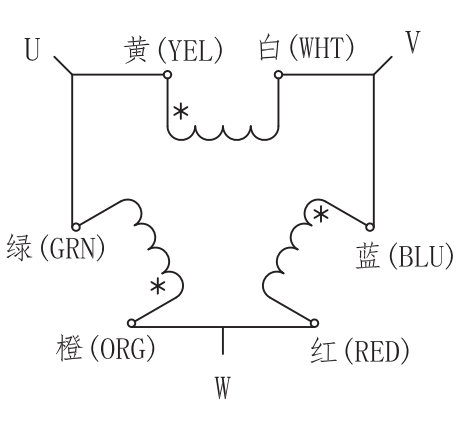

Wiring Diagram:
Pull out torque curve:
